BitKa Threat Model

• Application Version: 28/11/2025
• Description: A microservice-based digital wallet and trading platform that provides secure custodial account management, real-time market data access, and a verifiable off-chain ledger. The platform enables users to register and authenticate, manage profiles, deposit tokens, transfer funds, place trade orders, and initiate withdrawals signed by custody-controlled keys. It incorporates durable asynchronous processing for transactional correctness, integrates with Mailgun and GCS, authenticates internal services through a layered trust model, and maintains operational readiness through CI/CD and comprehensive audit logs.
• Document Owner: Thanisara Satalalai

---

External Dependencies

External dependencies are items outside of the application code.

ID	Description
1	Bitka and its database on premise instance is running on a Linux server running Ubuntu.
2	Bitka and its database on cloud instance is running on a Google Compute Engine on Google Cloud Platform.
3	BitKa's cloud storage is on Google Cloud Storage.
4	MailGun is used to send out notifications to users.

---

Entry Points

Entry points are the interfaces in which the user can feed data into the system.

ID	Name	Description	Trust Levels
1	HTTPS port	The primary public network port.	(4) Application layer services
1.1	User UI	Front-end web interface delivered via HTTPS. It is the primary entry point for end-users and initiates all user-driven workflows.	(4) Application layer services
1.1.1	Log in page	Public interface that collects user credentials and initiates authentication flows.	(2) Anonymous user
1.1.2	Registration page	Public interface allowing new users to create new accounts.	(2) Anonymous user
1.1.3	Account page	Authenticated user interface detailing account information.	(2) Anonymous user
1.1.3.1	Account page: Profile setup	First-time profile configuration after registration, where users enter initial identity details.	(3) Authorize user
1.1.3.2	Account page: Profile setting	Page allowing users to modify their profile details and preferences after initial setup.	(3) Authorize user
1.1.4	Transaction page	Page that enables users to initiate transfer and view transfer history.	(3) Authorize user
1.1.4.1	Transaction page: Transfer placing	User interface for initiating transfer within the system.	(3) Authorize user
1.1.4.2	Transaction page: Transfer confirmation	Displays transaction summary for user to verify prior to execution.	(3) Authorize user
1.1.4.3	Transaction page: Transfer success	Confirmation screen displaying status of successful transfer.	(3) Authorize user
1.1.5	Withdraw page	Page that enables users to initiate withdrawal.	(3) Authorize user
1.1.5.1	Withdraw page: Withdraw confirmation	Displays withdraw summary for user to verify prior to execution.	(3) Authorize user
1.1.5.2	Withdraw page: Withdraw success	Confirmation screen displaying status of successful withdrawal.	(3) Authorize user
1.1.6	Trade page	User interface for displaying market data and placing markets and limited trade orders.	(3) Authorize user
1.1.6.1	Trade page: Main	Landing page displaying market data, order forms, and trade history.	(3) Authorize user
1.1.6.2	Trade page: Limited buy	Interface for placing buy orders with specified price and quantity.	(3) Authorize user
1.1.6.3	Trade page: Limited sell	Interface for placing sell orders with specified price and quantity.	(3) Authorize user
1.1.6.4	Trade page: Market buy	Interface enabling instant market buy orders.	(3) Authorize user
1.1.6.5	Trade page: Market sell	Interface enabling instant market sell orders.	(3) Authorize user
2	API endpoints	internal entry points	(4) Application layer services
2.1	Authentication service	all authentication operations	(4) Application layer services
2.1.1	POST https://api.bitka.polishstack.com/v1/auth/login	Login	(2) Anonymous user
2.1.2	POST https://api.bitka.polishstack.com/v1/auth/register	Register	(2) Anonymous user
2.1.3	POST https://api.bitka.polishstack.com/v1/auth/refresh	Refresh access token	(3) Authorize user
2.1.4	POST https://api.bitka.polishstack.com/v1/auth/logout	Logout	(3) Authorize user
2.1.5	GET https://api.bitka.polishstack.com/v1/.well-known/jwks.json	JWKS (JSON Web Key Set)	(2) Anonymous user
2.2	User service	Provides access to user data, profile management, and security management.	(4) Application layer services
2.2.1	GET https://api.bitka.polishstack.com/v1/users/me	Get current user profile.	(3) Authorize user
2.2.2	PATCH https://api.bitka.polishstack.com/v1/users/me	Update current user profile.	(3) Authorize user
2.2.3	GET https://api.bitka.polishstack.com/v1/users/:id	Get user profile by ID.	(3) Authorize user
2.2.4	POST https://api.bitka.polishstack.com/v1/users/me/change-password	Change password for the authenticated user.	(3) Authorize user
2.3	Ledger service	Handles account balances, transactions and histories.	(4) Application layer services
2.3.1	GET https://api.bitka.polishstack.com/v1/ledger/accounts	List ledger accounts.	(3) Authorize user
2.3.2	GET https://api.bitka.polishstack.com/v1/ledger/accounts/:account_id	Get ledger account by id.	(3) Authorize user
2.3.3	GET https://api.bitka.polishstack.com/v1/ledger/transactions	List transactions.	(3) Authorize user
2.3.4	POST https://api.bitka.polishstack.com/v1/ledger/transactions	Create a transaction (debit/credit/transfer).	(3) Authorize user
2.3.5	GET https://api.bitka.polishstack.com/v1/ledger/transactions/:transaction_id	Get transaction by id.	(3) Authorize user
2.4	Order service	Manages trade order creation, querying, and lifecycle operations.	(4) Application layer services
2.4.1	POST https://api.bitka.polishstack.com/v1/orders	Create order.	(3) Authorize user
2.4.2	GET https://api.bitka.polishstack.com/v1/orders	List orders (filterable).	(3) Authorize user
2.4.3	GET https://api.bitka.polishstack.com/v1/orders/:order_id	Get order by id.	(3) Authorize user
2.4.4	DELETE https://api.bitka.polishstack.com/v1/orders/:order_id	Cancel order by id.	(3) Authorize user
2.5	Market data service	Provides market-related information such price data, order books, and real-time feeds.	(4) Application layer services
2.5.1	GET https://api.bitka.polishstack.com/v1/marketdata/symbols	List available symbols (market pairs).	(3) Authorize user
2.5.2	GET https://api.bitka.polishstack.com/v1/marketdata/candles	Get candles (OHLCV) for a symbol and interval (historical).	(3) Authorize user
2.5.3	GET https://api.bitka.polishstack.com/v1/marketdata/ticks	Get trades (ticks) for a symbol (historical).	(3) Authorize user
2.5.4	GET https://api.bitka.polishstack.com/v1/marketdata/orderbook/:symbol	Orderbook snapshot (top N) for a symbol.	(3) Authorize user
2.5.5	GET https://api.bitka.polishstack.com/v1/marketdata/orderbook/:symbol/history	Historical orderbook deltas/snapshots for reconciliation.	(3) Authorize user
2.5.6	GET https://api.bitka.polishstack.com/v1/marketdata/stream	Real-time streaming info (WebSocket).	(3) Authorize user
3	Third party entry points	Entry points for external, non user services.	(1) External services
3.1	Mailgun	External system used for delivering subscription emails.	(1) External services
3.2	Cloudflare R2/GCS	External object storage used for storing avatar, token icon, or other static files.	(1) External services

---

🛡️ Assets

Assets are valuable things that need to be kept safe.

ID	Name	Description	Trust Levels
1	User	Assets related to users.	(2) Anonymous user
1.1	User credentials	User's username and password.	(3) Authorize user
1.2	JWT	Token generated when user logs in, used to verify identity when user tries to access protected resource.	(4) Application layer services
1.2.1	Access token	Proves identity for short periods.	(4) Application layer services
1.2.2	Refresh token	Used to obtain new access tokens.	(3) Authorize user
1.2.3	Public key	Public keys for token verification.	(2) Anonymous user
1.2.4	Private key	Secret key for signing JWTS.	(5) Internal services
1.3	User data	Any personal or account-related data the application stores about a user.	(3) Authorize user
2	Service	Assets related to application and backend services.	(5) Internal services
2.1	Site Availability	Bitka should always be available and all of its services should be working as intended.	(5) Internal services
3	Infrastructure	Assets related to platform and deployment environment.	(5) Internal services
3.1	Database	PostgreSQL that stores service data.	(5) Internal services
3.2	TLS Certificates	Used to secure all communications between User UI and internal server.	(5) Internal services
3.3	Secret assets	Admin user credentials, database password, env files.	(6) Admin

---

Trust Level Definitions

ID	Name	Description
1	External services	Third party services that interact with services.
2	Anonymous user	User who has accessed the site but has yet to log in.
3	Authorize user	User who has logged in to the site with valid credentials.
4	Application layer services	Services that face the outside system and receive public input.
5	Internal services	Service that only communicates with internal system.
6	Admin	User with full privilege to manage website, services, and database.

---

Data Flow Diagram

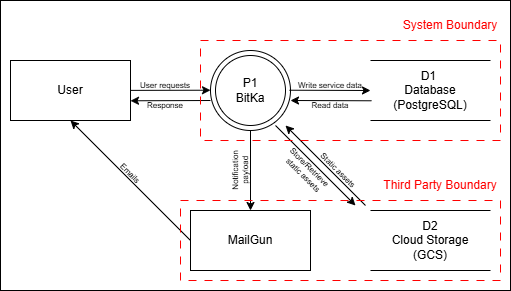

Level 0 Data Flow Diagram

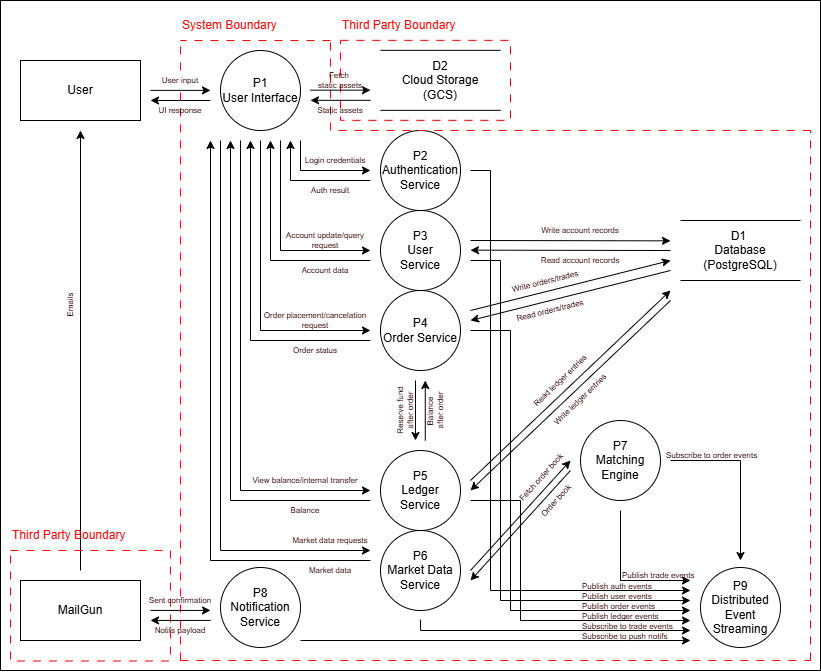

Level 1 Data Flow Diagram

---

STRIDE Threat Lists and Mitigation

Spoofing

ID	Component Involved	Entry Point	Target Asset	Description	Mitigation Ideas
1	User/P1	1.1.1 Log in page (UI), 2.1.1 POST /auth/login	1.1 User credentials, 1.2 JWT	An attacker spoofs a legitimate User to gain unauthorized access to the application.	Implement MFA.
2	P2	2. API endpoints (Internal Calls)	2. Service, 1.2.4 Private key	An attacker spoofs P2 to trick other services into accepting unauthorized requests.	Authenticate interservice communication.
3	MailGun/P8	3.1 Mailgun	2. Service, 3.3 Secret assets	An attacker spoofs Mailgun to send fake emails to the user or send fake confirmation status back to P8.	Clear communication with users when a third party service is compromised. Audit actions done by third party services.

Tampering

ID	Component Involved	Entry Point	Target Asset	Threat Description	Mitigation Ideas
1	Data Flows (In Transit)	1. HTTPS port, 2. API endpoints	1.3 User data, 1.2 JWT	An attacker modifies data being passed between services.	Authenticate interservice communication.
2	D1/D2	All POST/PATCH endpoints	3.1 Database, 1.3 User data	An attacker directly modifies account records, orders/trades, or static assets in the data stores.	Utilized principle of least privilege for accounts accessing the database.
3	P9	2. API endpoints (Internal Calls)	2. Service, 1.3 User data	An attacker injects or modifies events in the stream.	Input authentication for data going to P9 service.

Repudiation

ID	Component Involved	Entry Point	Target Asset	Threat Description	Mitigation Ideas
1	P4	1.1.6.2-5 Trade page, 2.3.4 POST /ledger/transactions, 2.4.1 POST /orders	1.3 User data, 3.1 Database	A user places an order but later denies placing it.	Log all actions done by users.

Information disclosure

ID	Component Involved	Entry Point	Target Asset	Threat Description	Mitigation Ideas
1	D1	All GET endpoints	3.1 Database, 1.1 User credentials, 1.3 User data	Sensitive data is leaked from the database.	Data encryption, strict access control lists and network segregation.
2	Data Flows (In Transit)	1. HTTPS port, 2. API endpoints	1.1 User credentials, 1.3 User data	Sensitive data is intercepted.	Ensure TLS is used end-to-end. Avoid logging sensitive data in plain text.

Denial of service

ID	Component Involved	Entry Point	Target Asset	Threat Description	Mitigation Ideas
1	P1/P2	1. HTTPS port, 2.1.1 POST /auth/login	2.1 Availability of the site	An attacker floods the public endpoints with requests.	Rate limiting on public APIs. Implement DDoS mitigation services.
2	P4/P7	All authorized user endpoints	2.1 Availability of the site	An attacker floods authorised user services with requests.	Rate limit user on service user/api calls.
3	D1	All GET/POST endpoints	3.1 Database, 2.1 Availability of the site	The database is overwhelmed by too many read/write requests from the services.	Proper indexing and query optimization.

Elevation of privilege

ID	Component Involved	Entry Point	Target Asset	Threat Description	Mitigation Ideas
1	P1/P2	All authorized user endpoints	1.3 User data, 6. Admin	An attacker with a basic user account exploits a vulnerability to gain administrator privileges.	Role-Based Access Control, Input validation and principle of least privilege.
2	Inter-Service Flows	2. API endpoints (Internal Calls)	2. Service, 3.3 Secret assets	A compromised service uses its internal credentials to perform actions it shouldn't.	Authenticate interservice communication.
